Allegion Hardware Installation
Allegion locks, PIMs and GWEs are wired to the controller's RS-485 reader ports.
Allegion AD300 Series locks are hardwired directly to the controller reader ports.

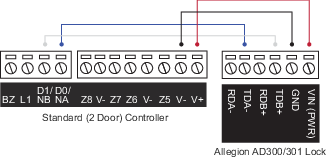

Standard (2 Door) Controller to AD300/301 Lock
/50914.png)

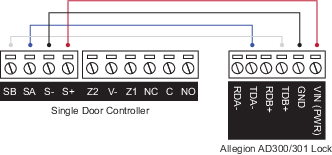

Single Door Controller to AD300/301 Lock
/50915.png)
For the Protege system to communicate with the wireless AD400 Series locks, you need to wire a PIM to the Protege controller. This integration uses an Allegion PIM400-485, which enables the configuration of up to 16 wireless locks.
The Allegion PIM400-485 is compatible with both standard and single door Protege controllers equipped with onboard RS-485 reader ports. The controller provides the PIM with a network connection and power supply.
Wiring varies slightly depending on the version of Allegion PIM400-485 you are using:
Standard (2 Door) Controller to PIM 400-485 V1: D1/NB connected to TB+
/33343.png)

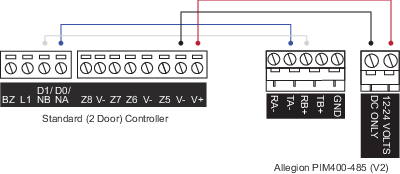

Standard (2 Door) Controller to PIM 400-485 V2: D1/NB connected to RB+
/50714.png)

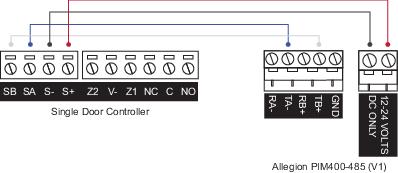

Single Door Controller to PIM 400-485 V1: SB connected to TB+
/33344.png)
Single Door Controller to PIM 400-485 V2: SB connected to RB+
/50715.png)
For the Protege system to communicate with the wireless LE and NDE locks, you need to wire a GWE to the Protege controller. This integration uses an Allegion ENGAGE Gateway, which enables the configuration of up to 10 wireless locks.
The Allegion ENGAGE Gateway is compatible with both standard and single door Protege controllers equipped with onboard RS-485 reader ports. The controller provides the gateway with a network connection and power supply.

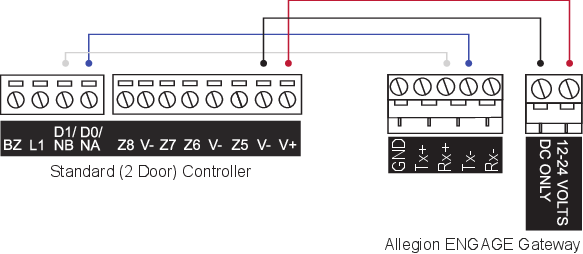

Standard (2 Door) Controller to ENGAGE Gateway: D1/NB connected to Rx+
/GWE Gateway_Standard.png)

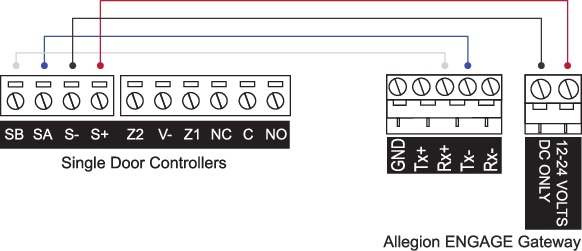

Single Door Controller to ENGAGE Gateway: SB connected to Rx+
/GWE Gateway_Single.png)
Wiring an Allegion AD300/301 Lock
